packard Inc Diverter Chutes

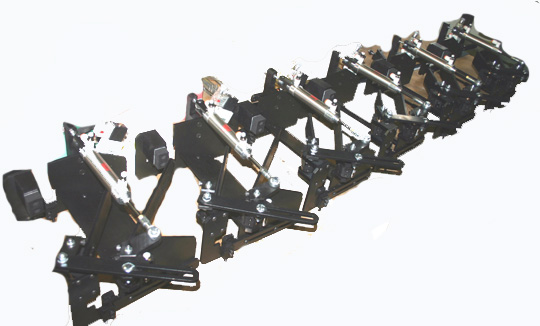

Metal Industry Part Diverter Chutes.

*Automatically divert a set number of parts at the startup of your system.

*Automatically defaults to “Reject”when air pressure is lost.

*Currently designed for several series Dorner and QC conveyors.

*Can be custom designed for your specific application.

*Improve your quality control while reducing labor costs.

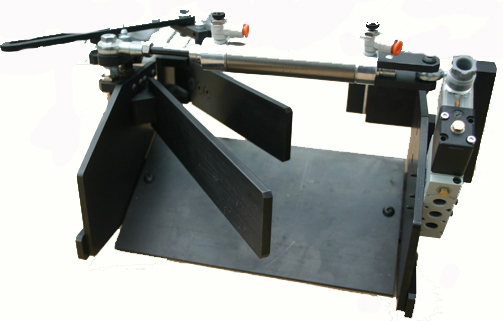

This is a generic reject conveyor gate/chute made as a accessory for a Dorner Or QC conveyor. It is adjustable and will bolt on to a 2" to 6" wide conveyor. The fail safe spring loaded air cylinder defaults the gate to the reject position with loss of air pressure. The air valve allows control of the gate and the proximity sensor provides feedback confirmation of one of the two positions The chute assembly is symmetrical in design and allows for assembly of either right hand or left hand exit.
